C Series – The Strong, Silent Type
Designed and engineered to be fan-less for silent performance. The potential to perform, the resilience of hardware, and one of the smallest of form factors open up a vastness of opportunity and flexibility where only the ZBOX C Series is a solution.

CI325    ZBOX FANLESS NANO – DUAL DISPLAY
Intel Celeron N3160 Quad Core
Intel HD Graphics – SUPPORTS DUAL DISPLAY
Dual Gigabit NIC, WiFi, Bluetooth
2 USB 2.0, 2 USB 3.0, 1 USB 3.0 Type-C
Card Reader
HDMI+DP+VGA
8GB DDR3 SODIMM RAM
120GB 2.5″ SATA SSD
VESA Bracket
1 x 40W AC Adaptor
Dim: 127.8x127x57mm
Windows 10 IoT Enterprise LTSC
PRICE $530.00 ex GST

CI327C    ZBOX FANLESS NANO – DUAL DISPLAY
Intel Celeron N3450 Quad Core
Intel HD Graphics 500
Dual Gigabit NIC, WiFi, Bluetooth
2 USB 2.0, 2 USB 3.0, 1 USB 3.0 Type-C
Card Reader
HDMI+DP+COM Port
8GB DDR3 SODIMM RAM
120GB 2.5″ SATA SSD
VESA Bracket
1 x 40W AC Adaptor
Dim: 127.8x127x57mm
Windows 10 IoT Enterprise LTSC
PRICE $550.00 ex GST

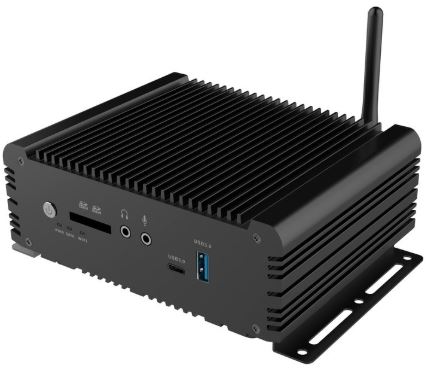

CI329 ZBOX PRO FANLESS NANO – DUAL DISPLAY
Intel Celeron N4100 Quad Core
Intel UHD Graphics 600
Dual Gigabit NIC, WiFi, Bluetooth
3 USB 3.0, 1 USB 3.0 Type-C – RS-232 serial port
Card Reader
HDMI+DP+VGA+COM Port
8GB DDR4 SODIMM RAM
120GB 2.5″ SATA SSD
VESA Bracket
1 x 40W AC Adaptor
Dim: 160mm x 126.7mm x 59mm
Hardware watchdog timer (Timeout value = 1 ～ 255, Unit = minute/second)
Windows 10 IoT Enterprise LTSC
PRICE $575.00 ex GST

CI549 ZBOX FANLESS NANO (Zoom & BlueJeans Validated)
Intel Core i5-7300U Dual Core (vPRO)
Intel HD 620 Graphics – supports DUAL DISPLAY
Dual Gigabit NIC, WiFi, Bluetooth
4 USB 3.0, 2 USB 3.1 Type-C, 1 x Thunderbolt 3
Card Reader
Thunderbolt (DP Adaptor) + HDMI
8GB DDR4 SODIMM RAM
120GB 2.5″ SATA SSD
VESA Bracket
1 x 65W AC Adaptor
Dim: 146.4×126.5×60.5mm
Windows 10 Professional
PRICE $1,230.00 ex GST
Note: Perfect for Huddle Rooms and Conference Rooms

CI620    ZBOX FANLESS NANO – DUAL DISPLAY
Intel Core i3-8130U Dual Core
Intel UHD 620 Graphics
Dual Gigabit NIC, WiFi, Bluetooth4.2
5 USB 3.0, 2 USB 3.1 Type-C
Card Reader
HDMI2.0 + DP1.2
8GB DDR4 SODIMM RAM
120GB 2.5″ SATA SSD
VESA Bracket
1 x 65W AC Adaptor
Dim: 204x129x68mm
Windows 10 Professional
PRICE $1,035.00 ex GST

CI640    ZBOX FANLESS NANO – DUAL DISPLAY
Intel Core i5-8250U Quad Core
Intel UHD 620 Graphics
Dual Gigabit NIC, WiFi, Bluetooth4.2
5 USB 3.0, 2 USB 3.1 Type-C
Card Reader
HDMI2.0 + DP1.2
8GB DDR4 SODIMM RAM
120GB 2.5″ SATA SSD
VESA Bracket
1 x 65W AC Adaptor
Dim: 204x129x68mm
Windows 10 Professional
PRICE $1,185.00 ex GST

CI660    ZBOX FANLESS NANO – DUAL DISPLAY
Intel Core i7-8550U Quad Core
Intel UHD 620 Graphics
Dual Gigabit NIC, WiFi, Bluetooth4.2
5 USB 3.0, 2 USB 3.1 Type-C
Card Reader
HDMI2.0 + DP1.2
8GB DDR4 SODIMM RAM
120GB 2.5″ SATA SSD
VESA Bracket
1 x 65W AC Adaptor
Dim: 204x129x68mm
Windows 10 Professional
PRICE $1,440.00 ex GST

NOTE: Barebone options available – Built to your specifications ie. No Windows OS installed, extra RAM and Storage – Imaged to your requirements.
