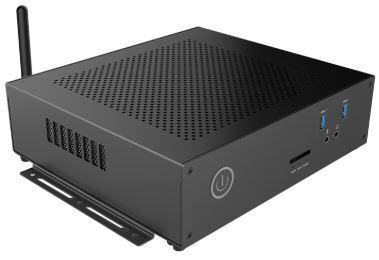

H39R5000W – zBox Healthcare Series – i9 -13900HX 24 Core – Quad Display
The ZBOX H39R5000W is a mini PC designed to facilitate the needs of medical and healthcare facilities of today and enable smarter, more powerful capabilities to meet the demands of future applications. Featuring a subtle compact design with rounded edges, white exterior, compliance to EN60601-1 medical electrical equipment certifications, and equipped with a powerful 13th gen Intel Core i9 processor and discrete professional-grade NVIDIA RTX 5000 Ada Generation GPU for demanding medical applications such as deploying AI diagnostic algorithms, medical imaging, rendering, 3d slicing, and more.
Features:
Intel Core i9-13900HX processor (24 cores and 32 threads)
– NVIDIA RTX 5000 Ada Generation GPU 16GB GDDR6 256-bit
– 2 x DDR5-5600 SO-DIMM Memory slot, Max 64GB
– Simultaneous Quad Display Ready (2x HDMI 2.1, 2x DisplayPort 1.4a), 8K Ready
– 2 x M.2 NVMe PCIe 4.0 x4 SSD slots
– 5 x USB 3.2, 1 x Thunderbolt 4
– Wi-Fi 6, 2 x 2.5Gbps Ethernet, Bluetooth 5.2
– Rounded Edge Design
– VESA mount compatible and L-shaped bracket mounting system
– EN60601-1 Compliant
– Windows 11 compatible
PRODUCT SPECIFICATION
Intel Core i9-13900HX (24-core, up to 5.4 GHz)
NVIDIA RTX 5000 Ada Generation Laptop GPU
Dual 2.5Gbps Ethernet, WiFi 6
5 x USB 3.2
Card Reader
4 x HDMI 2.0
1 x M.2 NVMe PCIe 4.0 x4 SSD slot, 1 x M.2 NVMe PCIe 4.0 x4 / SATA SSD slot
2 x DDR5 SODIMM slots
Dim: 209.8mm x 202.3mm x 67.5mm
