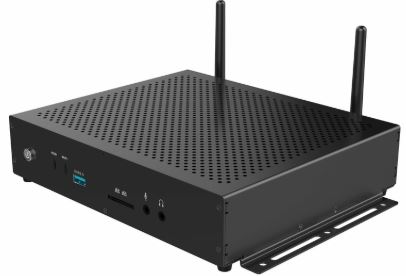

QK5P1000 zBox Pro Series – i5-7300U Dual Core – 4x Display

Powerful, fast, and rugged, the ZBOX PRO QK5P1000 has all it needs to bring speeding performance and powerful graphics to the table. Featuring an Intel quad-core processor, it packs a professional grade NVIDIA Quadro P1000 graphics to deliver life-like graphics and has a vast array of connectivity options including USB 3.0 ports, dual Gigabit Ethernet LAN, IEEE 802.11ac WIFI, and Bluetooth 4.2.

With four HDMI ports, it supports up to 4 displays to deliver fluid viewing at 4K 60 Hz resolution for life-like motion, making it the ideal solution for scientific visualization, digital art creation/production, CAD/CAM engineering, digital signage, and much more.

PRODUCT SPECIFICATION

Intel Core i5-7300U dual-core processor
NVIDIA Quadro P1000 4GB GDDR5
2x DDR4L-2133 SO-DIMM slot, Max 32GB
Max 4 displays (4x HDMI 2.0)
1x 2.5” SATA-III SSD/HDD bay
1x M.2 2242 key-M socket for NVMe/SATA SSD
3x USB 3.0, 1x RS-232 serial port
2x Gigabit Ethernet LAN, support Wake-on-LAN
IEEE 802.11ac/a/b/g/n WIFI & Bluetooth 4.2
Support Windows 10 and Ubuntu Linux
Hardware watchdog timer (Timeout value = 1 ~ 255, Unit = minute/second)
