Octek 2U Rackmount Video Analytics Node – utilizing Intel and Zotac Technology – At Ocean Office Automation the Applications are Endless

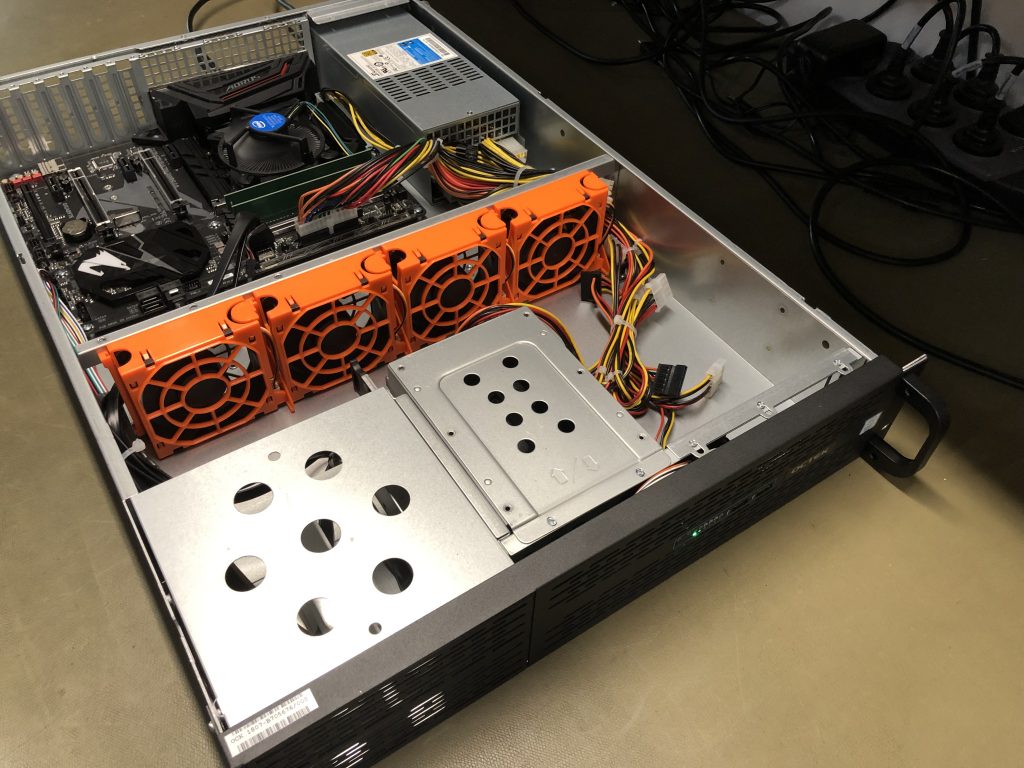

Octek 2U Rackmount System

Processor: Intel Core i7 8700 Processor 3.60GHz 12M Cache, 6 Cores, up to 4.60 GHz

Chipset:  Intel H370 Express Chipset

Memory:  16GB (2 x 8GB) DDR4 2400MHz (Four slots)

Graphics: Integrated Intel HD Graphics (DVI-D + HDMI) – support 2 displays

Sound: High Definition Audio

LAN:  Intel Integrated 10/100/1000 NIC

SSD: Zotac 120GB Solid State Drive

HDD: Enterprise Capacity 7200rpm SATA 6GB/S 3.5″ 4TB HDD

Exp Slots:  1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 4 x PCI Express x1 slots, 1 x M.2 Socket

Back Panel Connectors:  4 x USB2.0, 1 x DVI-D, 1 x HDMI, 4 x USB3.1, 1 x RJ-45, 6 x Audio Jacks

Chassis:  2U Rackmount Chassis with 2U 80+ PSU and 4x 80mm middle fan-wall exhaust fans (430W x 650D x 89H mm) with Rails
